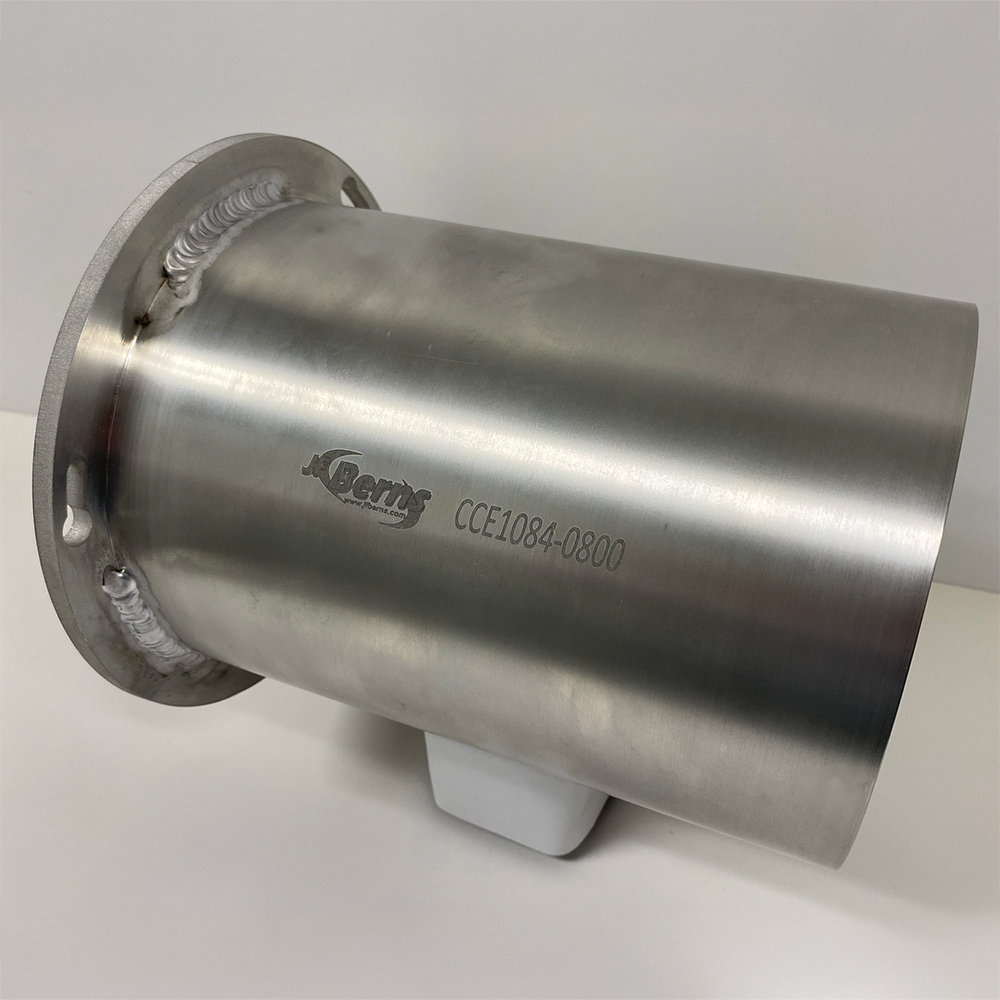

Coolant Collector Extensions
When the spindle liner is designed with an extension to increase the bar length capacity of the lathe, it often extends out past the standard coolant collector on the lathe. Our Coolant Collectors Extensions are designed to fit on the existing collector and extend out beyond the end of the spindle liner. This will keep the coolant flowing back into the main reservoir.
Documents
Coolant Collector Extension Layout (PDF)
To order a Coolant Collector Extension, fill out form downloaded below:
Coolant Collector Info Worksheet

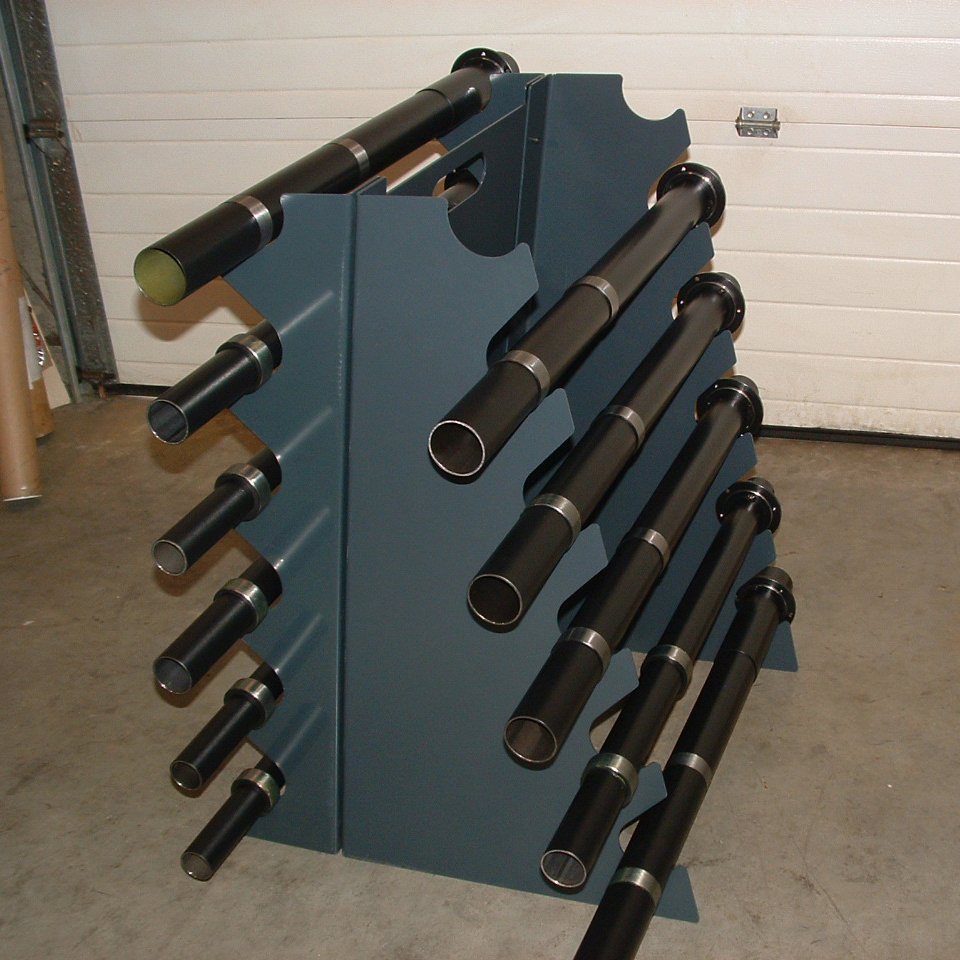

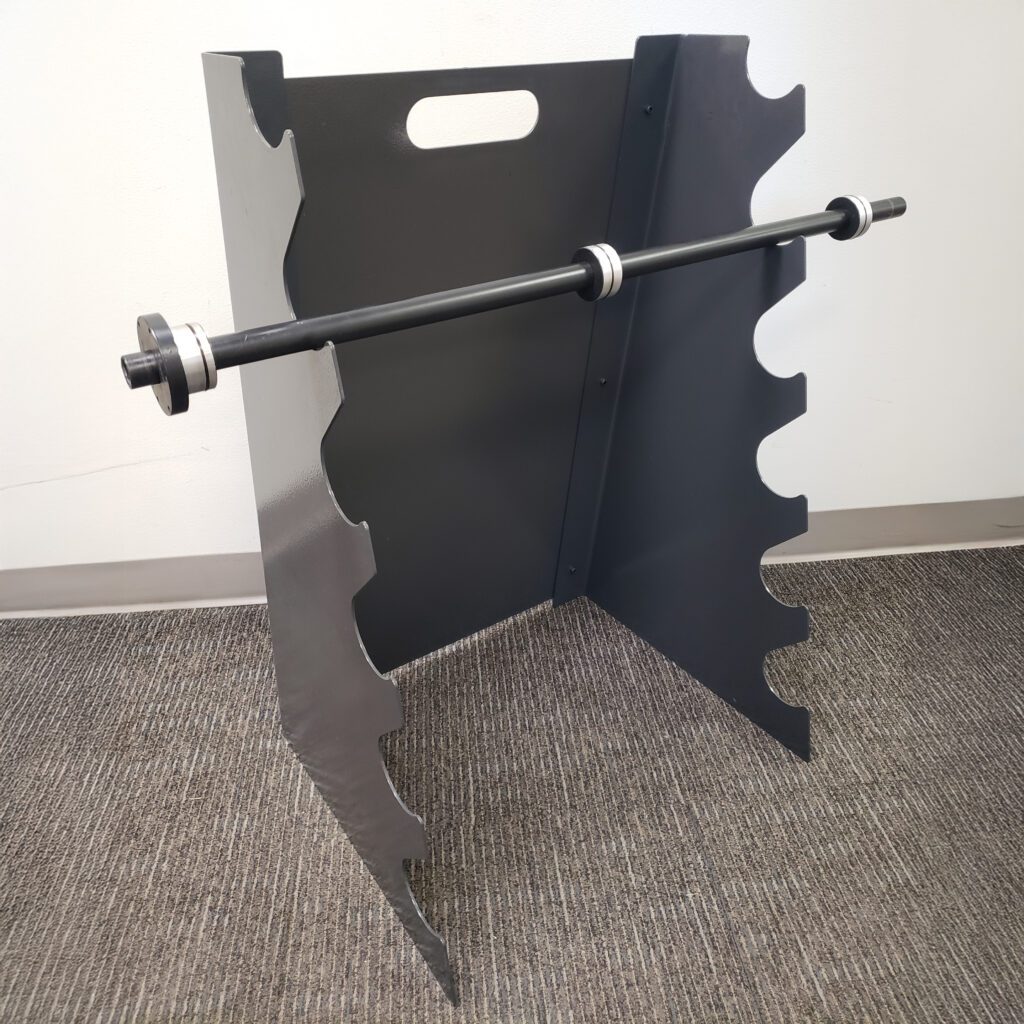

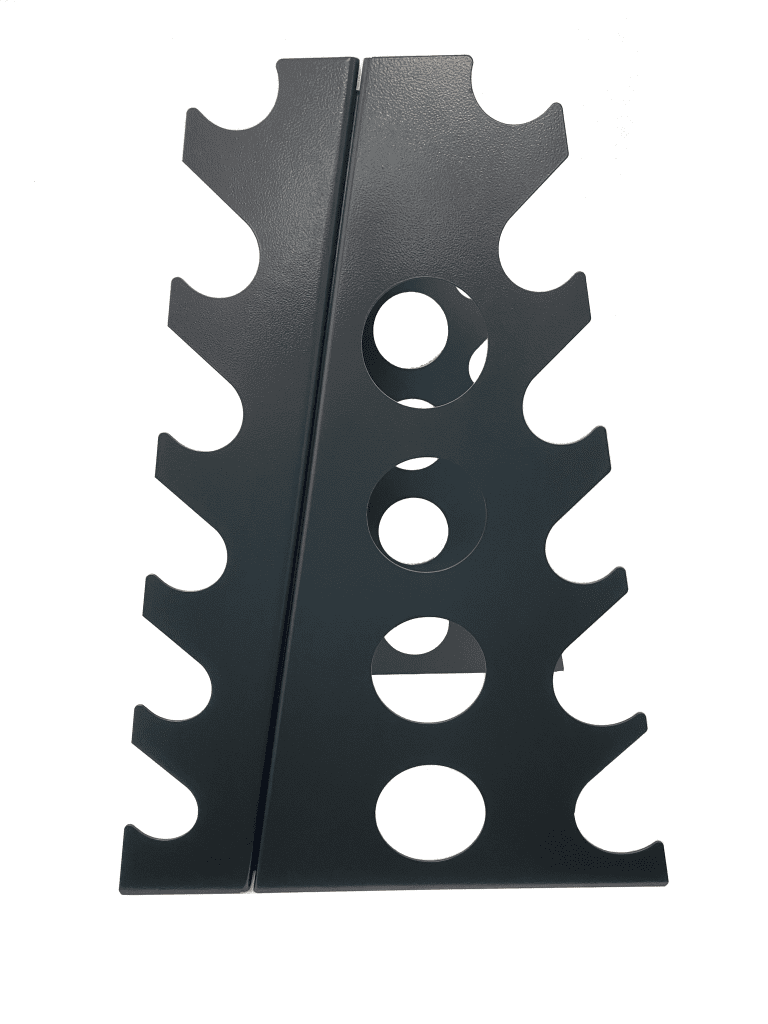

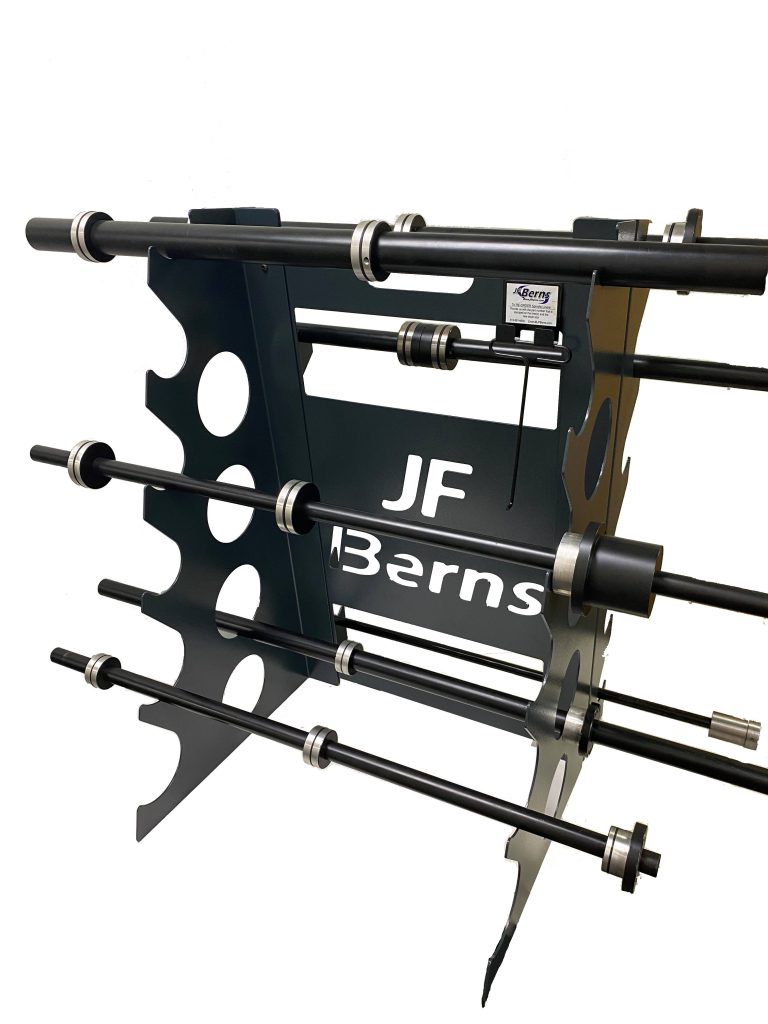

Spindle Liner Rack Kit
Designed to hold up to 16 spindle liners (if using the 4 side holes), this liner rack kit provides an excellent method to keep your spindle liners organized and off the ground.
To Order a Spindle Liner Rack Kit use part number:
LR-002: Price $675

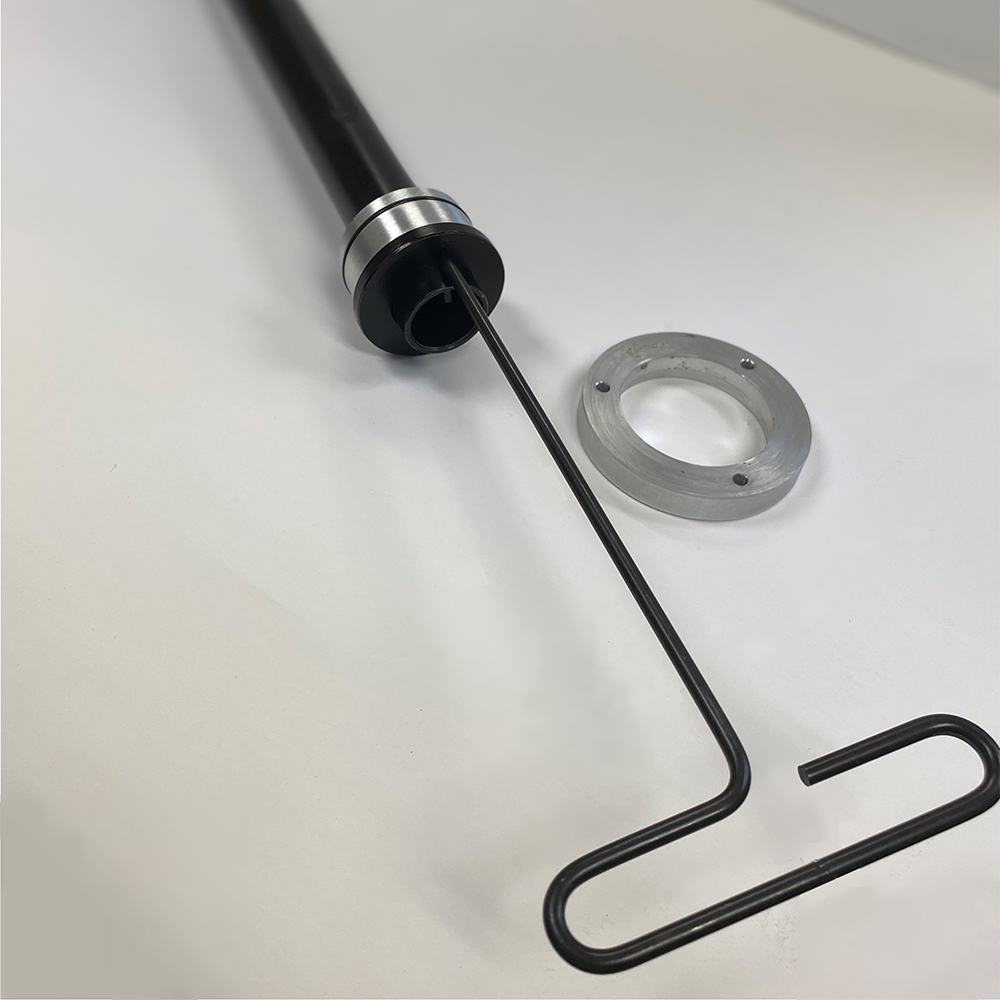

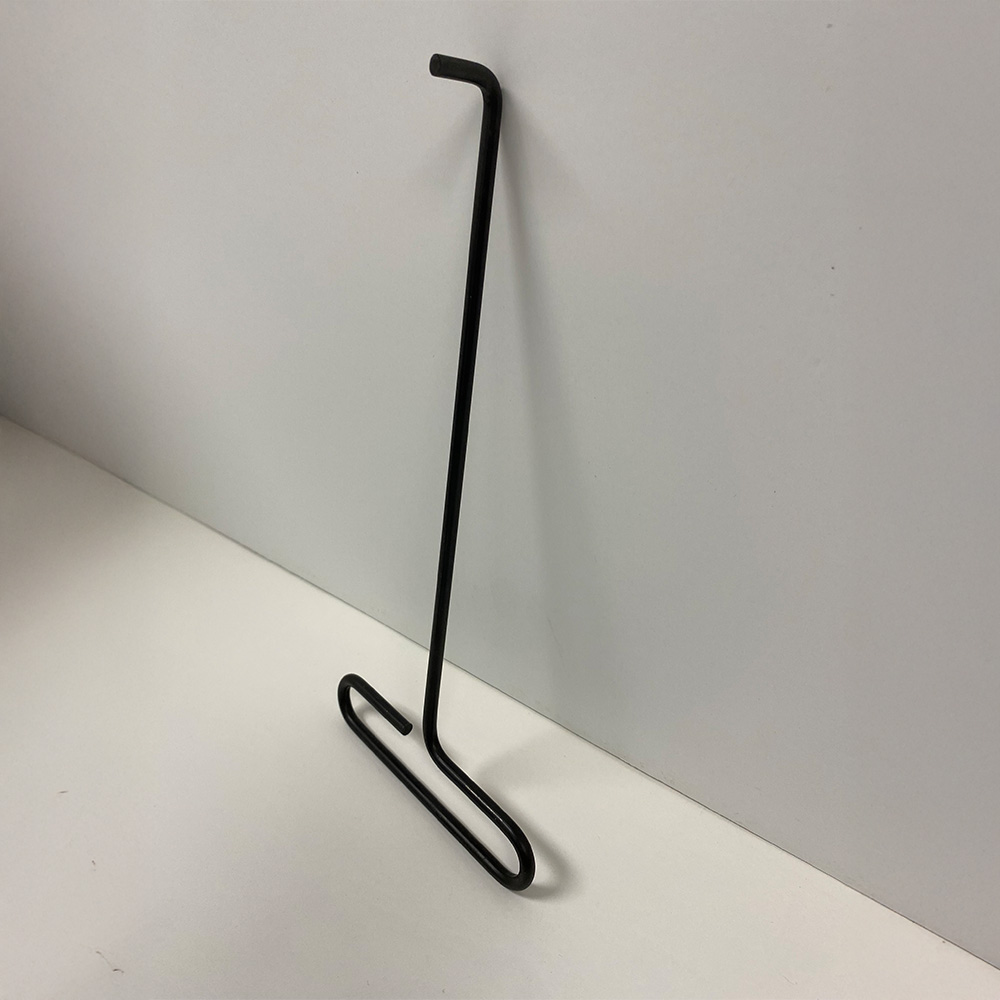

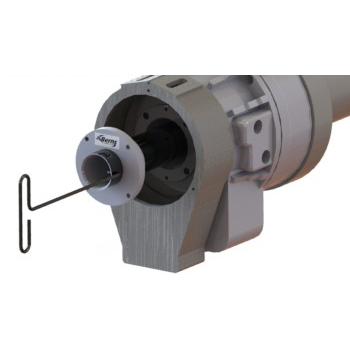

Easy Out Tool
The Easy Out Tool comes free with each spindle liner order that is for a lathe that we have not made liners for in the past. Also included is a free magnetic hanger. If for any reason you need another tool just use the part numbers below:
SL-EOT-01 Easy Out Tool
SL-EOH-01 Easy Out Tool Hanger
Draw Tubes and Draw Bars
The JF Berns Company also manufactures high quality draw tubes and draw bars for your CNC lathe. Go to our Draw Tube page for more detailed information.
